Datos del producto:
Pago y Envío Términos:
|
| Product name: | Programmable Temperature & Humidity Test Chamber | Control range of temperature: | -70℃～150℃ （Customizable） |
|---|---|---|---|
| Control range of humidity: | RH20%～98% | Controller: | Programmable LCD touch screen |
| Temperature fluctuation: | ±0.5℃ | Inside material: | Stainless steel SUS 304 # |
| Size: | Customized | Warranty: | 12 Months |

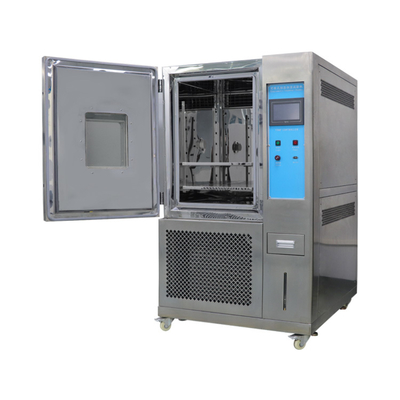

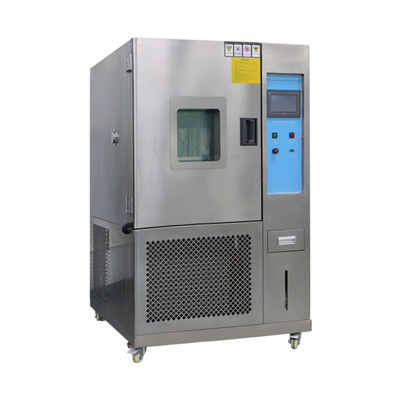

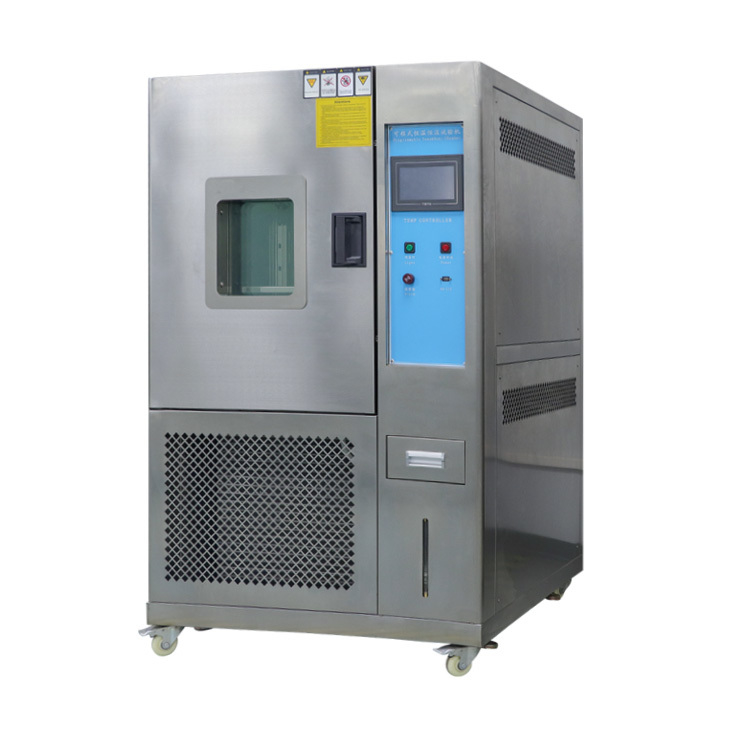

Stainless Steel Temperature Humidity Test Chamber/ High Low Temperature Control Cabinet
Characteristics:
1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. KJ-2091 constant temperature humidity tester supplier control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Description:
Simulating different environment condition. testing material performance, such as resist heat, resist dry,resist humidity and resist cold., defining performance of material.
Technical Parameter
| Model | A | B | C | D | E | F | |
| Size of inner box (W×H×D) |
40×50×40 cm |
50×60×50 cm |
40×75×60 cm |
60×85×80 cm |
100×100×80 cm |
100×100×100 cm |
|
| Size of outer box (W×H×D) |
92×138× 108cm |
102×146×116 cm |
102×162× 126cm |
113×172×148 cm |
150×186×139 cm |
158×188×168 cm |
|
| Volume of inner box | 80L | 150L | 225L | 408L | 800L | 1,000L | |
| Control range of temperature and humidity | A:-20℃～150℃ B:-40℃-～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98% | ||||||
| Performance | Fluctuation of temperature and humidity | ±0.5℃；±2.5%RH | |||||
| Deviation of temperature and humidity | ±0.5℃～±2℃；±3%RH(＜75%RH)；±5%RH(≥75%RH) | ||||||
| Accuracy of control analysis | ±0.3℃；±2.5%RH | ||||||
| Controller brand | Customized | ||||||
| Material | Interior | #SUS 304 Steel plate | |||||
| Exterior | White&Blue | ||||||
| Thermal insulation material | High temperature and high density vinyl chloride for mate foam insulation material | ||||||
| System wind path circulation | Centrifugal fan - wide band forced air circulation (upper in, lower out) |
||||||
| Refrigerating method | Single stage mechanical compression refrigeration | ||||||
| Refrigerating machine | Fully enclosed piston type compressor From TAIKANG French | ||||||
| Refrigerant | R4O4A/Dupont environmental refrigerant(R23+R4O4) | ||||||
| Condensation method | Air or water cooled | ||||||
| Heater | Nickel-chromium electric heating wire heater | ||||||
| Humidifier | Semi-enclosed steam humidification | ||||||
| Water supply method | Fully automatic circulating water supply (manual Watering) | ||||||
| Standard equipment | View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1 | ||||||
| Safety device | No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system | ||||||
| Power | 1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz | ||||||
Pictures
KEJIAN Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation
2.Equipment Operation Test Technology training
3. Equipment Calibration
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service.
FAQ:
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
